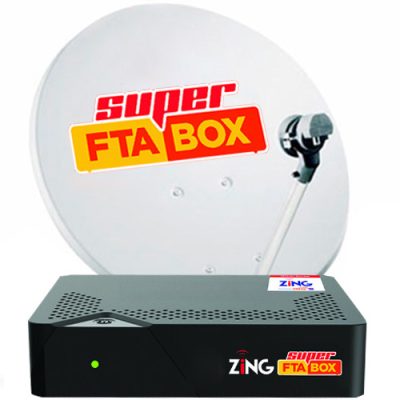

DD Free Dish DTH Mpeg2 SD Set Top Box Including Out Door Unit ( Antenna, LNB & Wire)

31 sold in last 45 minutes
  • No need to pay more to your cable operator or any dish Box with this box
  • MPEG-2 Box & Easy to operate.
  • Search function Capacity for sorting up to 200 transponder and 1000 channels
  • Fast Channel Selection
Availability: In Stock
2,599.00 (13% OFF) You save 400
Check service at:

Delivery within 24 hrs. All Over India.

Buy now
Need help placing an order?

+91-9729991794

We are supporting govt. of India cash less India program. You can get reward point on online payment

Need Help Making a Decision ? Let us Help You

Category:

Description

DD Free Dish MPEG2 Setup Box Highlights

  • You Can Get Life Time Free Channels With This Set Top Box
  • Digital Picture Clarity
  • Stereophonic Sound
  • 1000 Channel Memory
  • Free Delivery All Over India

Technical Specification

IN THE BOX

Sales Package 1 Pc Yash Retail (DD Free DTH) Mpeg2 SD Set Top Box , 1 Pc Remote, 10 Meter Connecting RG6 Coaxial Cable,  1 Pc RCA Cable, 2 Pc Battery for remote, 1 Pc Lnb, 2 Pc RG6 Connector, 1 Pc Out Door Unit – Antenna

GENERAL

Brand Yash Retail
Type Mpeg2 SD Set Top Box
Colour Black

SPECIFICATIONS

Connectivity RCA – 3 Pin Cable
WARRANTY Period 1 Year Warranty Of Set Top Box  by Yash Retail – You need to courier Your Set Top Faulty Set Top Box from Your Side at Yash Retail Office Address and They will send you repaired set top box at your address
Service Type Carry In Service Set Top Box Service, And For Installation – You can Install yourself this set top if you can arrange drill machine or you have already a Drill Machine Otherwise  you can You can also get the installation done by the local Electrician/installation team We will send you an Installation Guide Video Link With This Setup Box

If you needed help in buy this products then

Please call 011-40144558

Email : info@dthbroadband.com

About DD Free DTH

DD Free DTH is India’s only Free Direct-To-Home Service previously known as DD Direct +. This service was launched in December, 2004. DD Free DTH DTH service is owned and operated by Public Service Broadcaster Prasar Bharati (Doordarshan).

What is DTH ?

DTH is Direct to Home service for receiving TV service directly through satellite with a personal small DTH antenna. DTH service does not require a local cable operator for receiving TV service at home.



What is DD Free DTH?

Doordarshan’s DTH service which known as DD Free DTH was launched in December 2004 with the modest capacity of 33 channels. This service was inaugurated by Hon’ble Prime Minister of India. DD Free DTH has been upgraded from time to time. At present its capacity is 104 SDTV channels along with 40 Radio channels. DD Free DTH is available in Ku-Band on GSAT-15 (at 93.5°E). This Ku-Band DTH service provides the TV coverage throughout the Indian territory (except Andaman & Nicobar Islands). DTH signals can be received through a small sized DTH receive system ( i.e. Set Top Box and DTH of size of 60 to 90 cm in diameter) for which no monthly subscription fee is payable by the viewers.



Future of DD Free DTH?

Expansion of DD Free DTH has been carried out from time to time. With the introduction of new MPEG-4, DVB-S2 stream, the present capacity of 140 SDTV channels and 40 Radio channels is likely to be enhanced in near future. There is also plan to introduce HD channels in the bouquet of DD Free DTH. The 80 channels of MPEG-2 streams will also be expanded to MPEG-4 in phased manner.



How DD Free DTH is different from other DTH systems?

Most of the DTH operators, provide paid DTH Service. In the paid service, the DTH operators uplink the encrypted TV signals to the satellite and the signals are received by subscribers through a DTH receive system having a DTH Antenna and one Customized Set Top Box (DIGITAL DECODER). By choosing the bunch of various desired TV channels subscribers are charged by DTH operator for viewing these channels.

Whereas, viewing channels on DD Free DTH is absolutely free, as Doordarshan is not charging any monthly subscription fee from the viewers for complete bouquet of the DD Free DTH channels, making the system quite affordable. It requires only a small one time investment in purchasing a DTH Receive System containing Set-Top-Box and small sized DTH Antenna with LNB.



How to receive DD Free DTH?

Receive system of DD Free DTH contains three units: 1) One small sized DTH Antenna along with LNBF 2) Indoor Set-Top-Box (STB) also known as IRD (Integrated Receiver Decoder) and 3) Handy Remote control unit for STB. DTH Antenna installed at the roof top or on wall facing clear south receives the signal from satellite and transmits it to the indoor Set top box unit. The set top box further decodes the different TV channels from the DTH bouquet and feeds it to the TV set for viewing.

The complete DD Free DTH DTH system (DTH Antenna, Set Top Box and Remote control unit) is a one-time purchase from the open market with a nominal cost. There is absolutely no further recurring expenditure in terms of monthly subscription etc. for viewing DD Free DTH Channels.

Doordarshan has recently empanelled eleven Indian Set Top Box (STB) manufacturers who will manufacture, sell and install DD Free DTH STBs in India.​

1.Satellite Name:
a)Go to Installation menu or setup Programme from remote.
b)Select Satellite Edit menu.
c)Select Add New Satellite menu.
d)Select Sat Name Edit menu.
e)Enter Satellite Name as GSAT-15.
f)Enter Satellite Longitude as 93.5° E.
g)Press Exit.

2.LNB Configuration:
a)Go to LNB Configuration menu.Ensure that satellite selected is GSAT-15 only.
b)Set LNB Types as Universal.
c)Set LNB Power on.
d)Press Exit.

3.Transport streams of Transponder (TP) Edit:
a)Go to Transponder Edit menu. Ensure that satellite selected is GSAT-15.
b)Select Add New TP menu.
c)Enter TP Frequency as 11090 MHz.
d)Select Symbol rate as 29500 Ksps.
e)Select Polarization as Vertical.
f)‘22K’ OFF*.
g)‘Disc. Equal’. Off.
h)Select Scan as FTA.
i)Press OK.

After filling the above values go to ‘Search’ ​Press ‘OK’ The new 16 TV and 06 Radio services will be displayed. Similarly add all other four Transport streams (TPs) by entering respective frequencies, symbol rate and polarization as given in Table above. Note: – The above-mentioned steps may be in different order in some of the STBs.

Frequently Asked Questions (FAQs)​

Technical Issues:

1. How to update the changes in TV channel tuning manually in non iCAS STB?

EXAMPLE-1.

Following are the steps to be followed to scan or search the channels on DD Free Dish DTH bouquet.

Press ‘Menu’ Button on Remote of DD Free Dish Set-Top-Box
Go to ‘Installation’ or ‘Setup Programme’
Fill the details as below​:

​‘Satellite’ ​GSAT- 15
​‘T P Frequency’ ​11090 MHz
​‘LNB Frequency’ ​09750 MHz
​‘Symbol rate’​ ​​2 9500 Ksps
​‘Polarization’ ​V
​‘22K’​ ​​OFF
​​‘Search mode’ ​​​FTA
​‘Disc. Equal’​​ ​Off



After filling the above values go to ‘Search’ Press ‘OK’​.

The new TV and Radio services will be displayed.

For other frequencies and related parameters refer to table below

Note:-The above-mentioned steps may be in different order in some of the STBs.The different transponder frequency, LNB frequency, symbol rate etc. required to tune to the STBs for all the channels available in the DD Free Dish are summarized as below:-

​S. No. ​Transponder Frequency(MHz)​ Polarization Symbol Rate (Ksps) FEC LNB Frequency (MHz) 22K Disc. Equal
​1 ​11090 V 29500 3/4 09750 OFF OFF
​2 ​11170 V 29500 3/4 09750 OFF OFF
​3 ​11470 V 29500 3/4 10600 OFF OFF
​4 ​11510 V 29500 3/4 10600 OFF OFF
​5 ​11550 V 29500 3/4 10600 OFF OFF
​6 ​11630 V 30000 3/5 10600 OFF OFF

2. How to delete TV channel programme in STB manually?

Ans: The procedure to delete TV Channel programme in the TV channel list varies from make to make of STBs. Follow the procedure mentioned in the installation manual supplied along-with the STB.

EXAMPLE 2.

Following are the steps to be followed to delete channels in TV channel list:

Go to ‘Edit Programme’.
Select- ‘Delete Option’.
Select the channel, using up down key.
Press ‘OK’.
